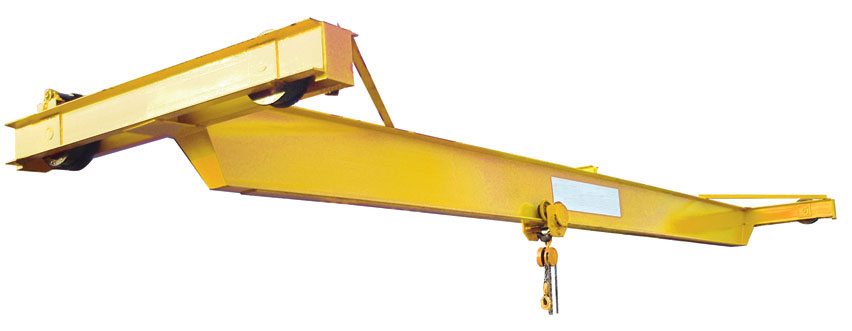

LDA Model Single Girder Bridge

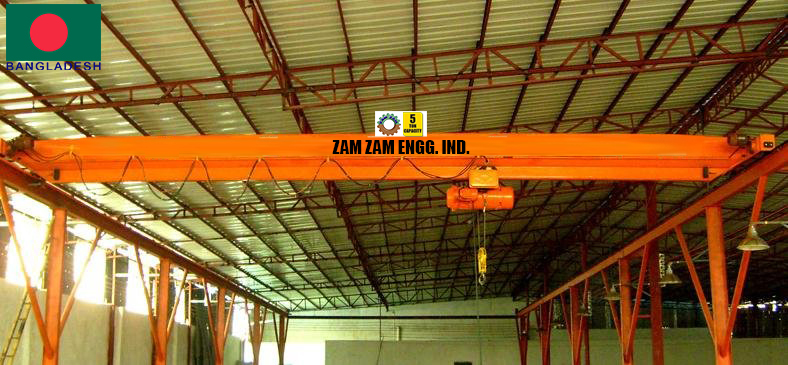

• Single Girder Overhead Cranes
We offer single girder overhead cranes with following specifications:
Capacity : 1 Ton to 15 Ton
Span : 3 Mtrs. To 20 Mtrs.
Lift : 1 Mtrs. To 20 Mtrs.
• Design, Features & Specifications:

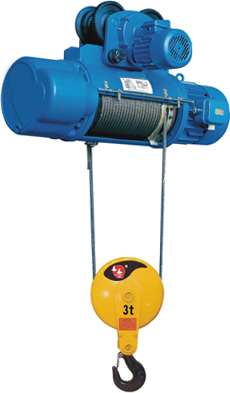

The single girder overhead cranes is very convenient equipment for material handling even in the small production units and warehouses. The reduced wheel loads combined with very low headroom standard hoists provide outstanding value. These material handling overhead cranes can fitted in different floor areas by using various fixing arrangements and modifications in design. The accurate dimensions result in optimal hook position providing exceptional travel characteristic. Generally there is minimum safety distance with the ceiling of the building. This provides a typical advantages of utilizing the space at its best even in the buildings with unfavorable dimension. We can design and efficiently install traveling cranes in available space by using different fixing arrangements. We are specialize in custom designing cranes based on the specific needs of the clients.
- • Standard Features:
Design: ‘ZAM ZAM’ Electric Overhead Traveling Cranes are designed & manufactured considering factor of safety in respect to appropriate class of duty.
Motors: The motors are used specially crane duty suitable for frequent starting, reversing & braking. Motors are totally enclosed in dust proof construction motors with integrated safety brakes, insulation protection for hoisting, CT & LT motions.
Brakes: Single/dual-disc/ shoe electromagnetic/ EHT brakes with features like automatic braking on power failure ( FAIL SAFE ). The entire gear boxes are made from carbon alloy steel. All gears & pinions running on antifriction type ball / roller bearings in totally enclosed oil bath giving constant splash lubrication. The helical / Spur gear designed for adequate strength and optimum wear resistance for smooth operation & long life.
Electrical Panel: Modular design, ease to install and maintain, reliable operation, fuse less circuitry, ducted wiring and compact terminals. Motor overload protection to prevent overloading.
Limit Switch : Safety limit switches for stoppers will be provided to prevent over traveling in all motions.
Painting: Two coats of primer before assembly & two coats of synthetic enamel after testing.
• Optional Features :
- Variable speed
- Soft starter
- Slip Ring motors
- Operation thro pendent push button station
- DSL system for power feeding
